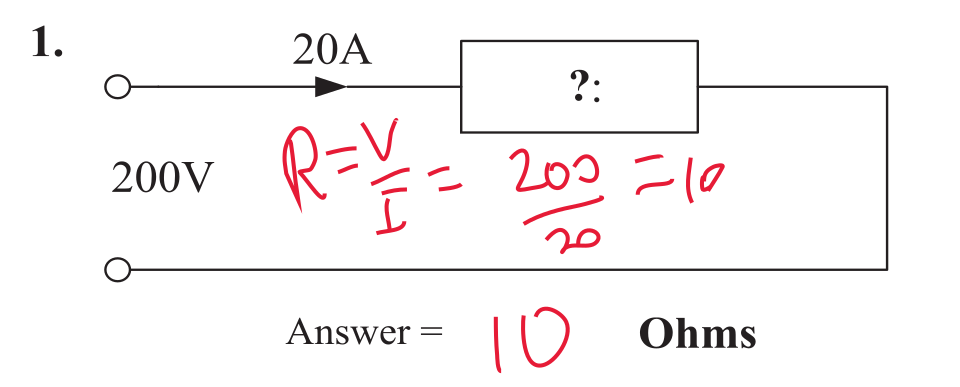

Question 1

The objective of this question is to work out the unknown resistance \( R \).

See also: Worksheet 1A, Question 1.

We have the following information:

  • the current flow through the circuit (20 A); and
  • the driving source voltage of the circuit (200 V).


The driving source is depicted as a current source, as the current flow in the circuit is fixed. The current source is drawn as shown so that it produces a positive current in the same direction as the current shown. This circuit may be solved using Ohm's Law:

\( R = \frac{V_{\mathrm{s}}}{I} = \frac{200}{10} = 20 \) i.e. \( R \) = 10 Ω #.


Question 2


The objective of this question is to work out the unknown current \( I \).

We have the following information:

  • the resistance of the circuit (45 Ω); and
  • the voltage applied to the circuit (60 V).


This circuit may be solved using Ohm's Law:

\( I = \frac{V}{R} = \frac{60}{45} \) i.e. \( I \) = 1.33 A (to 3 sf) #.


Question 3


Question 3 is similar to Question 2.

The objective of this question is to work out the unknown current \( I \).

We have the following information:

  • the resistance of the circuit (95 Ω); and
  • the voltage applied to the circuit (45 V).


This circuit may be solved using Ohm's Law:

\( I = \frac{V}{R} = \frac{45}{95} \) i.e. \( I \) = 0.474 A (to 3 sf) #.


Question 4


The objective of this question is to work out the unknown voltage \( V \).

We have the following information:

  • the resistance of the circuit (35 Ω); and
  • the current flow in the (1.26 A).


This circuit may be solved using Ohm's Law:

\( V = IR = 1.26 \cdot 35 \) i.e. \( V \) = 44.1 V #.


Question 5


The objective of this question is to work out the unknown supply voltage \( V \), similarly to Question 1.

We have the following information:

  • the current flow through the circuit (25 A); and
  • the total resistance of the circuit (9 Ω).


This circuit may be solved using Ohm's Law:

\( V_{\mathrm{s}} = IR = 25 \cdot 9 = 225 \) i.e. \( V_{\mathrm{s}}\) = 225 V #.


Question 6


Series circuits have the following characteristics:

  • The current flow through a series circuit is the same through all the components; and
  • The total voltage drop across a series circuit is the sum of the voltage drops across each individual component; and
  • The total resistance of a set of series resistors is the sum of each individual resistance.


Question 7


The objective of this question is to work out the unknown current \( I \), given the circuit as shown.

We have the following information:

  • the circuit has two 29 Ω resistors in series; and
  • the voltage applied to the circuit is 230 V.


This circuit may be solved using two rules:

  • Series resistance; and
  • Ohm's Law.

The series resistance formula gives us a total resistance (\( R_{\mathrm{TOT}} \)) of \( 29 + 29 \) = 58 Ω.

\( I = \frac{V}{ R_{\mathrm{TOT}}} = \frac{230}{58} \) i.e. \( I \) = 3.97 A (to 3 sf) #.


Question 8


The objective of this question is to work out the unknown current \( I \), given the circuit as shown.

We have the following information:

  • the circuit has a 12 Ω resistor and a 57 Ω resistor in series; and
  • the voltage applied to the circuit is 230 V.


This circuit may be solved using two rules:

  • Series resistance; and
  • Ohm's Law.

The series resistance formula gives us a total resistance (\( R_{\mathrm{TOT}} \)) of \( 12 + 57 \) = 69 Ω.

\( I = \frac{V}{ R_{\mathrm{TOT}}} = \frac{9}{69} \) i.e. \( I \) = 0.130 A (to 3 sf) #.


Question 9


The objective of this question is to work out the unknown current \( I \), given the circuit as shown.

We have the following information:

  • the circuit has the following series resistors: 12 Ω, 27 Ω, 25 Ω, 9 Ω, and 12 Ω; and
  • the voltage applied to the circuit is 150 V.


This circuit may be solved using two rules:

  • Series resistance; and
  • Ohm's Law.

The series resistance formula gives us a total resistance (\( R_{\mathrm{TOT}} \)) of \( 12 + 27 + 25 + 9 + 12 \) = 85 Ω.

The addition method shown above is called binary tree addition. I have broken down the addition into pairs of numbers (to simplify the additions), added them together, then added those numbers pair-wise until I am left with the final sum. This is a particular technique of adding numbers by hand, but any suitable technique will do.

\( I = \frac{V}{ R_{\mathrm{TOT}}} = \frac{150}{85} \) i.e. \( I \) = 1.77 A (to 3 sf) #.


Question 10


State Ohms Law in words:

This question has several possible interpretations, but the answers should cover at least one of these concepts:

  • \( V = I R \) The voltage drop is equal to the product of the current and resistance;
  • \( I = \frac{V}{R} \) The current is the ratio of the voltage drop and the resistance;
  • \( R = \frac{V}{I} \) The resistance is the ratio of the voltage drop and the current.

There are other interpretations of Ohm's Law, but they should cover at least the basic concepts above.
